Automatic Side-Turn Truck Dumpers: Advanced Bulk Unloading for Safer and Higher-Throughput Operations

Automatic side-turn truck dumpers are engineered unloading systems for rapidly transferring bulk materials from trucks and trailers into receiving pits, hoppers, conveyors, or storage systems. By lifting and rotating a loaded vehicle laterally, the equipment uses gravity to discharge material through the open side of the truck body. Hydraulic actuation, automatic vehicle positioning, clamping systems, safety interlocks, remote monitoring, and optional vibration equipment combine to create a controlled unloading process with significantly less manual intervention.

These systems are designed for demanding environments such as mining, metallurgy, electric power generation, coal handling, grain processing, cement production, chemical manufacturing, ports, recycling, and other large bulk-material yards. They are particularly valuable where vehicle turnaround time, operator safety, material recovery, dust control, and continuous plant operation are critical performance requirements.

Compared with manual unloading or conventional rear-dump arrangements, an automatic side-turn truck dumper can provide a more compact and controlled unloading solution. It can reduce the need for personnel to work near the unloading platform, improve discharge performance for difficult materials, and support centralized operation from a control room. The result is a system that connects road transportation with the next stage of bulk-material handling more efficiently.

Automatic Side-Turn Truck Dumpers

1. What Is an Automatic Side-Turn Truck Dumper?

An automatic side-turn truck dumper is a heavy-duty hydraulic unloading platform that receives a loaded truck or trailer, secures the vehicle, and rotates it laterally to discharge the load. The platform is designed to support the combined weight of the vehicle and material while maintaining stability throughout the lifting and tilting cycle.

The equipment normally includes a structural steel platform, hydraulic cylinders, wheel chocks, vehicle clamps, position sensors, hydraulic power units, control cabinets, safety barriers, emergency-stop devices, and discharge interfaces. Depending on the site configuration, the platform may be installed above a receiving pit, hopper, conveyor, or enclosed transfer point.

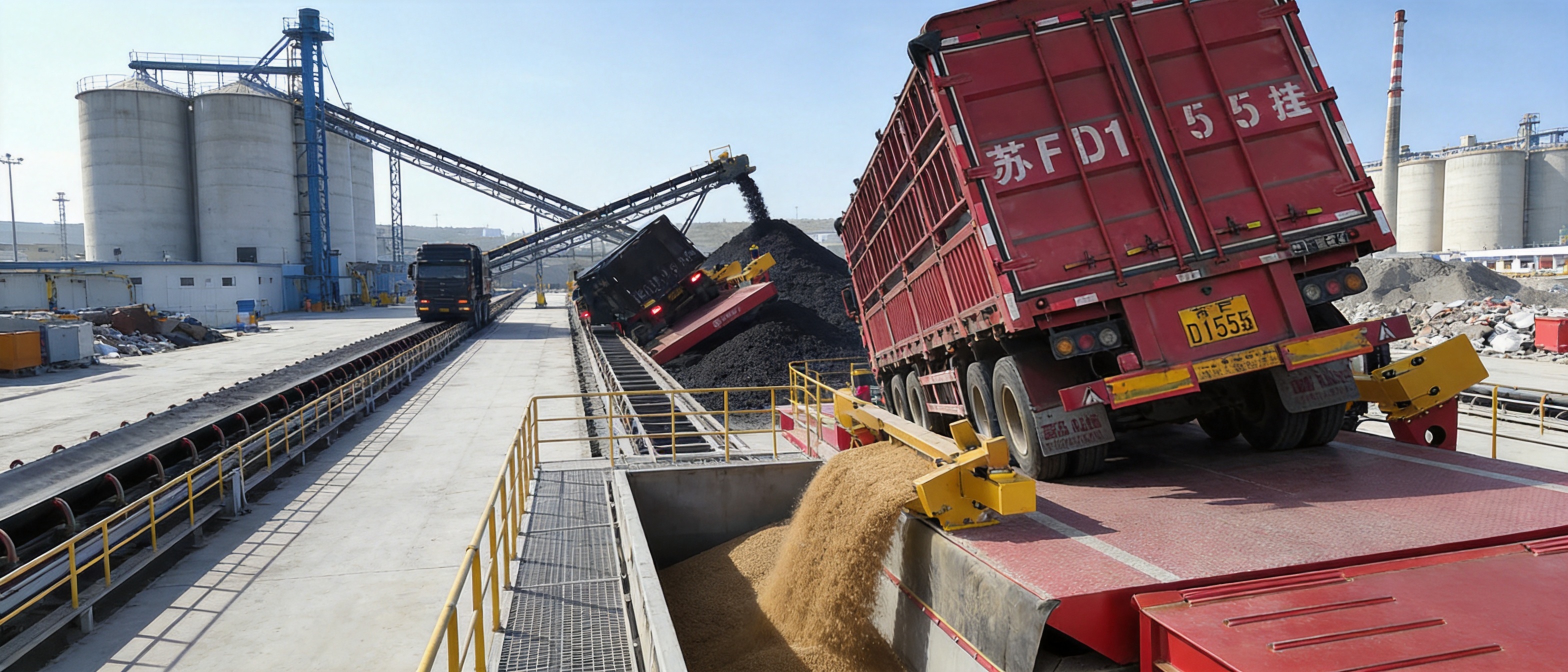

The unloading sequence begins when the truck enters the designated platform area. Sensors and positioning devices confirm that the vehicle is correctly aligned. Wheel chocks or other restraints secure the vehicle, while hydraulic clamps may be activated to prevent unwanted movement. Once the control system confirms that all safety conditions are satisfied, the hydraulic cylinders raise and rotate the platform.

During the side-turn movement, the truck body and chassis are supported by the platform. Bulk material flows out through the side of the body and into the collection system below or beside the dumper. When unloading is complete, optional vibration devices can help remove residual material from the truck body. The platform then returns to its original position, the restraints are released, and the truck exits the system.

The entire process can be controlled automatically. Operators may monitor vehicle entry, clamping, lifting, discharge, return, and release functions from a remote control room. This arrangement reduces the need for employees to enter the active unloading zone and allows the site to integrate the dumper with upstream traffic management and downstream conveying equipment.

2. Why Side-Turn Unloading Is Different

Traditional unloading approaches often depend on manual labor, rear tipping, or multiple pieces of auxiliary equipment. Manual unloading is slow and exposes workers to dust, moving vehicles, uneven surfaces, and repetitive physical work. Rear-dump systems can provide good performance for free-flowing material, but they may require greater vertical clearance and can be affected by unstable ground conditions, sticky material, or limitations in the receiving area.

A side-turn dumper changes the direction and geometry of the unloading process. Instead of raising the front of the truck body to a steep rearward angle, the equipment rotates the entire vehicle laterally. This can be advantageous where the receiving pit is located beside the vehicle path or where available headroom is restricted.

The lateral movement also supports a controlled discharge path. Materials can be directed into a receiving hopper, enclosed pit, or conveyor interface. With an optional guiding device, material can be prevented from accumulating on the unloading platform, reducing cleanup requirements and helping maintain a cleaner work area.

Side-turn technology is suitable for a wide range of bulk materials. Free-flowing materials such as coal, sand, gravel, grain, fertilizer, and certain pellets can generally discharge at a moderate tilt angle. More cohesive materials, including wet coal, iron ore fines, clay, and other materials that tend to adhere to the truck body, may require a greater angle, vibration, suitable liners, or a combination of these features.

3. Main Product Advantages

3.1 Fully Automatic Operation

The central advantage of the automatic side-turn truck dumper is the integration of vehicle handling and unloading into one automated sequence. A properly configured system can manage positioning, clamping, lifting, tilting, vibration, return, and release with limited operator intervention.

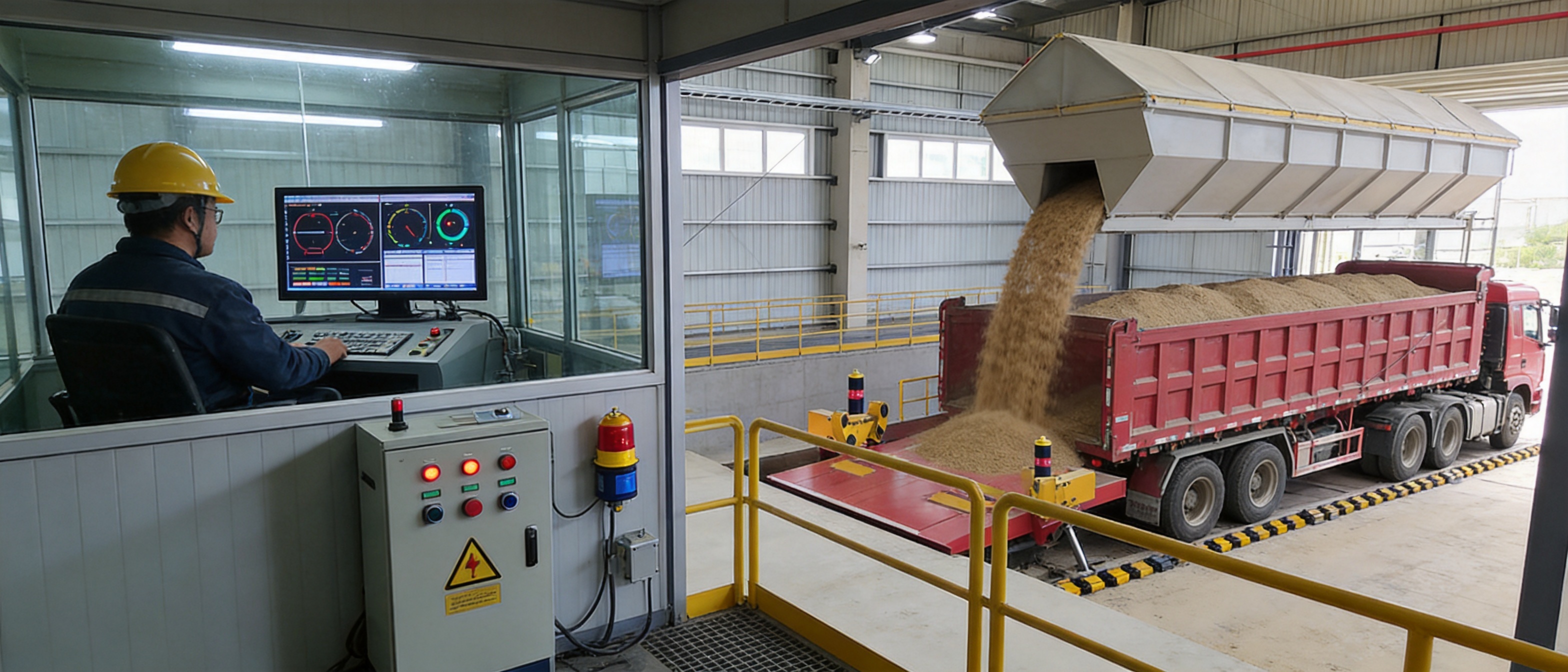

Remote operation allows personnel to remain in a protected control room rather than standing beside the truck during the unloading cycle. The control system can display operating status, sensor signals, hydraulic conditions, alarms, and cycle information. This supports safer supervision and provides operators with a clearer overview of the process.

Automation also improves consistency. Manual procedures may vary according to the operator, material condition, vehicle type, weather, or workload. An automated dumper follows programmed steps and interlocks, reducing variation between cycles. Consistent operation helps the receiving system maintain a more predictable flow of material.

3.2 Multiple Tilting Angles

The equipment can be configured with different side-turn angles according to material characteristics and unloading requirements. A 45-degree mode is suitable for conventional materials with relatively good flowability, including coal, sand, gravel, and certain grains. A 55-degree mode is intended for more difficult materials such as wet coal, iron ore fines, and clay.

The higher angle produces a stronger gravity component and helps material move away from the truck body. This is especially useful when the load has absorbed moisture, contains fine particles, or has remained in the truck for an extended period. Selecting the appropriate angle can reduce residue and avoid repeated manual cleaning.

The technical material supplied for the product identifies a maximum lifting angle of 45 or 55 degrees for the listed models. Actual operating angles should be confirmed during engineering design because vehicle dimensions, body construction, center of gravity, material properties, receiving-pit geometry, and local safety requirements all influence the final configuration.

3.3 Optional High-Frequency Vibration

Some bulk materials do not flow freely even when the truck body is tilted. Moisture, cohesion, temperature, particle size distribution, or material compaction may cause the load to cling to the sidewalls and floor. A configurable vibration device can apply controlled vibration to the vehicle body or platform, helping loosen material and improve discharge completeness.

Vibration is particularly valuable in applications involving wet coal, sticky fines, clay-bearing materials, fertilizers, and other products that may form bridges or lumps. The vibration system should be selected according to vehicle structure, material behavior, noise limits, and the required discharge cycle. Excessive vibration can impose unnecessary loads on the vehicle and structure, so frequency and operating duration should be controlled.

3.4 Material Guiding Equipment

An optional material guiding device directs the discharged load toward the intended receiving point. Without suitable guidance, bulk material may scatter across the platform, fall into inaccessible areas, or accumulate around structural components. Such accumulation increases cleanup time and may interfere with sensors, access routes, or future vehicle cycles.

A guiding system can also support dust-management objectives by creating a more enclosed and predictable transfer route. When combined with a receiving hopper, skirt boards, extraction points, or water-mist equipment where appropriate, it can help reduce uncontrolled material movement.

3.5 Dedicated Operation Paths

A dedicated operation path can be added to improve access for inspection, maintenance, and controlled on-site activities. Separating personnel routes from truck movement and dumper rotation areas contributes to safer plant layout planning.

Access platforms, handrails, gates, guardrails, and maintenance walkways should be designed as part of the complete installation rather than added after commissioning. Proper access planning allows technicians to inspect hydraulic components, sensors, clamps, structural members, and discharge interfaces without entering hazardous zones unnecessarily.

3.6 High Load Capacity

The listed product range includes models with maximum lifting capacities of 80, 100, and 150 metric tons. These capacities allow the system to serve different truck and trailer classes, from heavy rigid vehicles to large semi-trailers used in mining and industrial logistics.

Load capacity is not determined only by the material tonnage. Engineering calculations must include the tare weight of the vehicle, uneven loading, dynamic forces during lifting and stopping, vibration loads, wind conditions, hydraulic pressure, and the vehicle’s center of gravity. Correct capacity selection is essential for structural reliability and safe operation.

4. Product Models and Technical Parameters

The following table summarizes the principal models and configurations provided for the automatic side-turn truck dumper range.

Model	Available Platform Size, Length × Width	Maximum Lifting Weight	Maximum Lifting Angle
TQXCZ 80	16 × 3 m or 18 × 3 m	80 metric tons	45° or 55°
TQXCZ 100	18 × 3 m or 20 × 3 m	100 metric tons	45° or 55°
TQXCZ 150	18 × 3 m, 20 × 3 m, or 22 × 3 m	150 metric tons	45° or 55°

The platform length should be selected according to the truck or trailer wheelbase, body length, axle configuration, approach direction, and required safety clearance. Width is also important because the platform must accommodate the vehicle while maintaining adequate space for restraints, guides, structural components, and maintenance access.

The stated dimensions are product configurations rather than a substitute for a site-specific layout. A complete project design may require approach ramps, discharge hoppers, transfer conveyors, dust-control equipment, electrical rooms, hydraulic power units, guardrails, drainage, and traffic-control systems. These components should be considered during the early planning stage.

5. Hydraulic and Structural Design

5.1 Heavy-Duty Platform Structure

The platform is the primary load-bearing component of the dumper. It must support the vehicle and its load during stationary positioning, lifting, rotation, discharge, vibration, and return. Heavy-duty steel construction provides the necessary strength and rigidity for repeated operation in industrial environments.

Structural design should account for static and dynamic loading. Static loads include the total vehicle weight and the material load. Dynamic loads arise when the platform starts or stops, when the load shifts during rotation, and when vibration equipment is operating. Uneven loading is another important factor because bulk material is rarely distributed perfectly across the vehicle body.

Protective coatings can help reduce corrosion caused by moisture, dust, chemicals, and outdoor exposure. The appropriate coating system depends on the site atmosphere and the material being handled. Coal yards, chemical plants, coastal terminals, and fertilizer facilities may require different corrosion-protection specifications.

5.2 Hydraulic Lifting System

Hydraulic cylinders provide the controlled force needed to lift and rotate the platform. A dual-cylinder arrangement can distribute the lifting force and help maintain balanced movement. Hydraulic power allows high load capacity within a relatively compact mechanical arrangement.

Hydraulic control should provide smooth acceleration, controlled rotation speed, stable stopping, and a reliable return movement. Pressure relief devices protect the circuit from overload, while hydraulic lock valves can help prevent uncontrolled descent in the event of pressure loss or a hose failure.

Position sensors can monitor the angle and movement of the platform. If the actual position does not correspond to the expected sequence, the control system can stop the cycle and issue an alarm. Monitoring cylinder movement can also help identify uneven loading, cylinder drift, or mechanical obstruction before a more serious problem develops.

5.3 Vehicle Positioning and Restraint

Reliable positioning is essential because a truck that is not correctly aligned may create uneven loading or interfere with the movement envelope. Wheel chocks, guides, clamps, and sensors work together to confirm that the vehicle is properly located before lifting begins.

The restraint system should be compatible with the range of trucks expected at the site. Important considerations include wheel dimensions, axle spacing, trailer type, body shape, suspension behavior, and the location of accessible structural points. Adjustable components can make the dumper more flexible when multiple vehicle configurations are used.

The system should not rely on the driver’s judgment alone. Automatic confirmation of vehicle position and restraint status helps prevent operation when a truck is incorrectly placed, a door or gate is open, or a safety zone has not been cleared.

6. Control, Automation, and Remote Monitoring

The control system is responsible for coordinating the mechanical, hydraulic, electrical, and safety functions of the dumper. A typical automatic sequence may include truck detection, platform alignment, wheel-chock activation, clamp engagement, safety-zone confirmation, hydraulic lifting, angle control, optional vibration, return to level, restraint release, and cycle completion.

Human-machine isolation is one of the most important features of the system. Operators can supervise the operation from a remote control room, reducing exposure to moving trucks, rotating equipment, falling materials, dust, noise, and changing weather conditions.

A modern control system can record cycle counts, operating times, alarm history, hydraulic status, sensor signals, and maintenance events. This information supports preventive maintenance and helps managers evaluate equipment utilization. If the dumper is connected to a larger plant-control system, its status can be coordinated with conveyors, feeders, gates, dust collectors, and storage systems.

Remote diagnostic capability can assist maintenance teams in identifying abnormal cylinder movement, sensor faults, hydraulic pressure changes, communication failures, or repeated safety trips. Early detection can reduce unplanned downtime and allow spare parts or technicians to be prepared before a failure stops the unloading line.

Automation does not eliminate the need for trained personnel. Operators must understand the sequence, alarm conditions, emergency procedures, vehicle restrictions, and manual-recovery steps. A safe installation combines automatic controls with clear procedures, regular training, and disciplined inspection.

7. Safety Systems and Risk Reduction

Truck unloading involves heavy vehicles, high loads, hydraulic energy, moving structures, and falling bulk material. A properly designed automatic side-turn dumper uses several layers of protection rather than relying on one safety device.

Emergency-stop buttons can be installed at accessible locations around the equipment and in the control room. Activation should stop or place the system in a safe state according to the approved safety design. Audible alarms and warning lights can indicate that a rotation cycle is about to begin.

Hydraulic lock valves help limit uncontrolled platform movement. Mechanical supports or maintenance locks may be used when personnel must work beneath or near raised components. These supports are not a replacement for lockout and isolation procedures, but they provide additional protection during planned maintenance.

Light curtains, safety scanners, interlocked gates, and physical barriers can prevent operation when a person enters the danger zone. The safety system should be designed around the actual site layout, including truck access, walking routes, inspection areas, discharge points, and emergency exits.

Vehicle restraints are equally important. The platform should not lift until the vehicle is correctly positioned and secured. The control system should also verify that the truck cabin, body, tailgate, side panels, and other relevant components are in the correct condition for unloading.

Standards and regulations applicable to the installation must be confirmed for the project location. The supplied product information refers to EN 1570 and ASME B20.1 as relevant safety references. Final compliance depends on the complete equipment design, local regulations, electrical standards, risk assessment, installation method, and commissioning procedures.

8. Performance Compared with Traditional Methods

Automatic side-turn dumpers provide several advantages over manual shoveling and conventional rear-dump unloading. Manual work typically requires more personnel and produces longer unloading times. It also exposes workers to the material and to vehicle movement. A side-turn dumper transfers most of the physical work to the machine and allows supervision from a remote location.

Compared with rear-dump trucks, side-turn systems can reduce cycle time in suitable applications. The product material reports average cycle times of approximately 4.2 minutes for side-turn operation compared with approximately 9.5 minutes for rear-dump systems in a cited field comparison. Actual results vary with truck size, material properties, operator procedures, receiving-system capacity, and traffic organization.

Side-turn equipment may also require less vertical clearance than a high rear-tip arrangement, although the lateral movement envelope must be carefully considered. The site must provide sufficient space for rotation, vehicle approach, discharge, guardrails, maintenance access, and safe separation from other equipment.

Material residue is another important performance factor. The supplied comparison identifies residue levels of approximately 0.3 to 0.6 percent for side-turn operation, compared with higher levels for manual and rear-dump methods. Vibration, suitable tilt angles, liners, and guiding devices can further improve discharge for cohesive materials.

In the same comparison, annual throughput for side-turn installations is identified as approximately 170,000 to 210,000 tons for an eight-hour-shift baseline. This is higher than the stated ranges for manual and rear-dump operations. These figures should be treated as reference values because actual throughput depends on the complete logistics chain, including truck arrival frequency and downstream material-handling capacity.

8.1 Labor Efficiency

Manual shoveling can require four to six workers per shift, while rear-dump systems may require two to three workers depending on the degree of automation. A fully automated side-turn dumper can reduce routine unloading supervision to one remote operator or control-room position, although maintenance, traffic management, inspection, and emergency-response personnel may still be required.

Reducing labor demand does not mean reducing operational responsibility. Instead, labor is redirected from hazardous manual unloading to control, inspection, maintenance, logistics coordination, and process improvement. This can provide a more sustainable workforce model for large facilities.

8.2 Material Recovery and Cleanliness

Spillage and residue represent both economic and environmental costs. Product left on the platform or scattered around the unloading area may need to be recovered manually. It can also contaminate drainage systems, create slip hazards, or increase dust during subsequent vehicle movements.

A controlled side discharge, guiding device, appropriate hopper design, and vibration system can help keep more of the material within the intended transfer route. Improved cleanliness also makes inspections easier and reduces the time required for housekeeping.

8.3 Vehicle Turnaround

Faster unloading improves the utilization of trucks and trailers. Shorter turnaround times allow a transportation fleet to complete more deliveries within a working period and reduce congestion at the receiving yard. This benefit is particularly significant in continuous operations such as power stations, steel plants, grain terminals, and mines.

9. Applications Across Different Industries

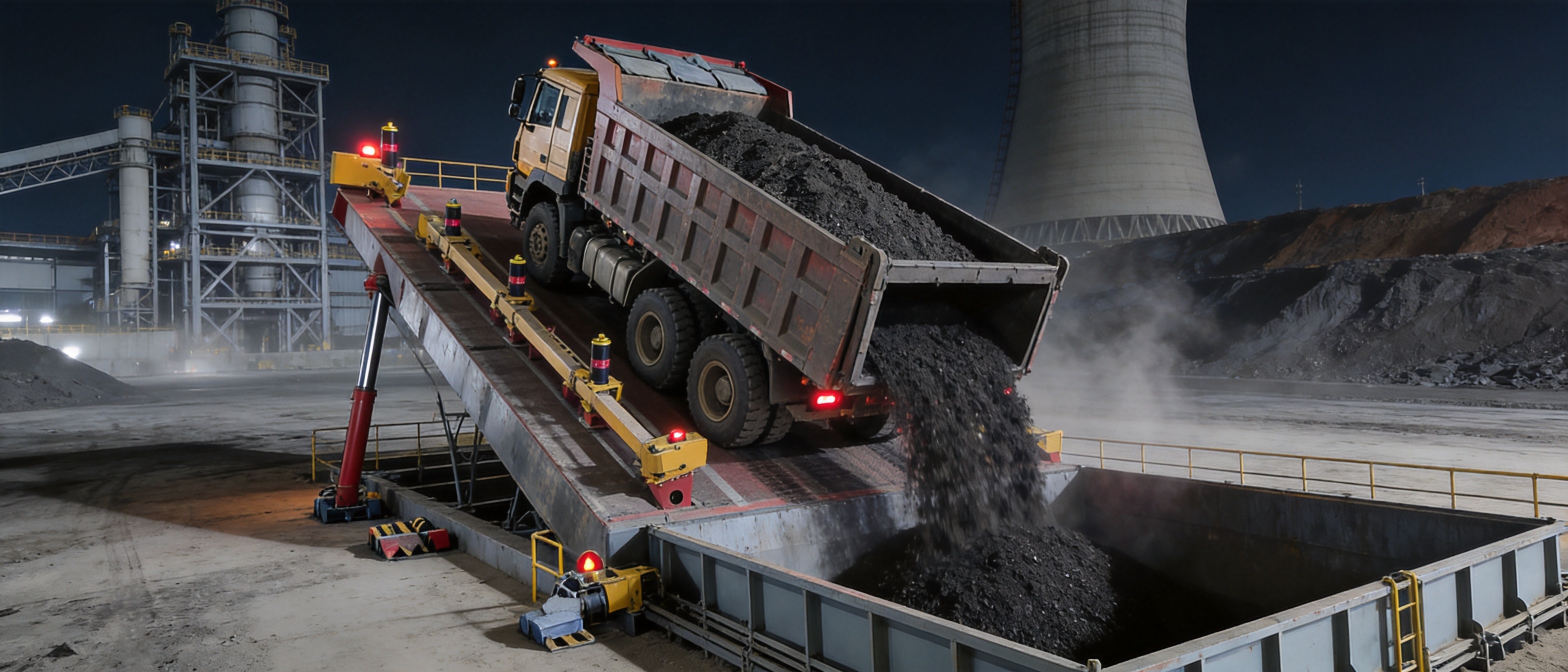

9.1 Coal and Power Generation

Coal-fired power stations and industrial boilers require reliable delivery of fuel to storage yards or conveyor systems. Coal can vary considerably in moisture, particle size, and flowability. A side-turn dumper with a 45-degree mode can handle relatively free-flowing coal, while the 55-degree configuration and optional vibration can support wet or compacted coal.

Because power plants often operate continuously, unloading equipment must be designed for repeated cycles and integration with conveyors, feeders, crushers, and stockyard systems. Remote operation can reduce exposure to coal dust and moving vehicles.

9.2 Mining and Metallurgy

Mining and metallurgical facilities handle heavy materials such as iron ore, concentrates, mineral fines, limestone, slag, and other bulk products. These materials can impose high loads and may contain moisture or fine particles that increase adhesion.

The high-capacity TQXCZ 100 and TQXCZ 150 models can be evaluated for large mining vehicles and heavy trailers. Structural reinforcement, wear protection, dust suppression, and foundation design are especially important in these applications.

9.3 Grain and Agricultural Materials

Grain elevators, feed plants, flour mills, oilseed facilities, and agricultural terminals require rapid unloading while minimizing product loss. Side-turn dumpers can be integrated with receiving pits and conveying systems for wheat, corn, rice, soybeans, feed ingredients, and other granular products.

Food and feed applications require careful attention to cleanability, contamination prevention, dust control, corrosion protection, and access for inspection. The discharge route should be designed to reduce accumulation and make housekeeping practical.

9.4 Cement and Building Materials

Cement plants and construction-material facilities may receive clinker, limestone, gypsum, sand, aggregate, and other bulk products. These materials can be abrasive and may generate significant dust. Wear-resistant surfaces, enclosed discharge points, extraction systems, and suitable sealing arrangements can improve service life and environmental control.

9.5 Chemical and Fertilizer Terminals

Chemical and fertilizer facilities handle products with different levels of corrosiveness, moisture sensitivity, and flowability. The dumper’s materials, coating system, seals, electrical components, and discharge arrangement should be selected according to the specific product safety data and plant requirements.

9.6 Recycling and Waste Handling

Recycling centers and industrial waste facilities may receive mixed materials with inconsistent density and flow behavior. Automation can help maintain separation between the vehicle and unloading zone, while robust guiding and containment systems can limit scattered material. The design should consider oversize objects, foreign materials, impact loads, and cleaning requirements.

10. Advanced Manufacturing and Engineering Strengths

The performance of a side-turn truck dumper depends not only on its published lifting capacity but also on the quality of engineering, fabrication, assembly, testing, and after-sales support. Jiangsu Zhengding Intelligent Equipment Co., Ltd. is presented as a national high-tech enterprise specializing in research, development, manufacturing, and sales of intelligent loading and unloading equipment.

The company’s product range includes rear dumpers, side-turn truck dumpers, automobile loading equipment, container flippers, and related automated systems. This broad product scope is valuable because it allows the manufacturer to understand multiple loading and unloading arrangements rather than focusing on only one machine type.

Its manufacturing strength is based on combining mechanical engineering, hydraulic control, automation, safety systems, and logistics-process design. A side-turn dumper is not simply a steel platform. It is a coordinated system in which structural components, hydraulic cylinders, sensors, controls, restraints, discharge equipment, and site interfaces must operate together.

10.1 Integrated Research and Development

Integrated research and development supports customization for different industries and vehicle types. Important engineering variables include material density, moisture, particle size, truck dimensions, axle layout, desired cycle time, discharge direction, receiving-hopper design, and available installation space.

By developing equipment for automobiles, containers, and ships, the company can apply experience from different logistics environments to new projects. This can be useful for customers that require more than one type of automated transfer system within the same industrial group.

10.2 Intelligent Control and Metering

The supplied company information identifies intelligent weighing systems, remote diagnostics, and integrated metering and unloading systems as part of the company’s capabilities. Weighing can help verify incoming and discharged quantities, support inventory management, and improve transaction accuracy.

When weighing data is connected to the control system, the operator can associate a load with a vehicle, delivery order, material type, or unloading time. This creates a more transparent material-flow record and can support production planning and quality control.

10.3 Fabrication Quality and Heavy-Duty Assembly

Heavy-duty unloading equipment requires accurate fabrication of large structural components. Platform alignment, cylinder mounting points, restraint locations, and rotating or lifting interfaces must meet the design tolerances required for safe and smooth operation.

Good manufacturing practice includes controlled steel preparation, dimensional inspection, weld-quality management, component traceability, hydraulic-circuit cleanliness, electrical-panel inspection, and functional testing. These processes help reduce the risk of misalignment, premature wear, hydraulic leakage, and commissioning delays.

Protective coating and surface preparation are also important. The dumper may operate outdoors or in environments containing water, salts, dust, chemicals, or corrosive vapors. Correct coating selection and application can extend maintenance intervals and help preserve the structural platform.

10.4 Factory Testing and Commissioning Preparation

Factory testing should verify hydraulic movement, sensor signals, control logic, emergency stops, interlocks, alarm functions, restraint operation, and communication with external systems. Where practical, the manufacturer can conduct dry-cycle tests and simulated operating sequences before shipment.

Pre-assembly and pre-testing can shorten installation time at the customer’s site. The supplied product information indicates that many units are delivered pre-assembled and may be installed within approximately five to seven days, depending on foundation readiness, site access, electrical work, and integration requirements.

Final commissioning must still include loaded testing, vehicle-specific verification, safety validation, operator training, and acceptance according to the project specification. Factory testing and site commissioning are complementary stages rather than substitutes for one another.

10.5 International Project Experience

The company’s equipment is reported to serve steel, chemical, cement, coal, grain, oil, food, feed, port, papermaking, and new-energy industries. Its products have also been exported to Japan, Brazil, Egypt, Pakistan, India, the Middle East, and Southeast Asia.

International project experience can strengthen a manufacturer’s ability to manage different environmental conditions, electrical requirements, documentation expectations, transport arrangements, and local installation practices. The company also identifies international users from the beverage, grain, agricultural, chemical, food, and building-material sectors.

For a buyer, the most important evaluation is not the number of industries or countries alone. Customers should review the manufacturer’s relevant references, technical drawings, quality records, inspection procedures, spare-parts support, warranty terms, and ability to provide service for the specific project.

11. Installation and Site Planning

A side-turn truck dumper should be considered as part of a complete unloading station. The site plan must include the truck approach road, platform foundation, vehicle alignment, rotation envelope, discharge hopper, conveyor connection, drainage, dust control, electrical supply, hydraulic equipment, control room, maintenance access, and emergency routes.

The supplied information gives an approximate standard footprint of 16 meters in length, 5 meters in width, and 6 meters in height for a semi-trailer installation, including approach ramps and a discharge hopper. Compact rigid-truck configurations may require approximately 12 meters by 4.5 meters, although actual dimensions depend on the selected model and layout.

Foundation design must support static and dynamic loads and must be coordinated with local soil conditions. The foundation should also allow accurate installation of the platform and hydraulic assemblies. Drainage is important in outdoor installations because standing water can accelerate corrosion and affect vehicle traction.

Traffic planning should prevent trucks from entering the platform at excessive speed or approaching from an unsafe angle. Clearly marked lanes, signals, barriers, wheel guides, lighting, and communication systems can improve vehicle movement. If several trucks arrive at the same time, a staging area may be required to prevent congestion on public roads or inside the plant.

Discharge design should match the properties of the material. Fine dusty products may require enclosed hoppers and extraction equipment. Abrasive products may require wear plates or replaceable liners. Sticky products may need larger openings, steeper transfer surfaces, vibration, or anti-adhesion coatings.

12. Maintenance and Lifecycle Management

Routine maintenance is essential for preserving safety, reliability, and cycle performance. Operators should inspect wheel chocks, clamps, sensors, hydraulic hoses, cylinder mounts, structural welds, guards, alarms, and emergency-stop devices according to an approved schedule.

Hydraulic maintenance includes checking oil level and cleanliness, inspecting for leaks, monitoring pressure, replacing filters, and examining hoses and fittings. Contaminated hydraulic oil can damage valves and cylinders, reduce control accuracy, and increase downtime. The maintenance program should follow the manufacturer’s recommended fluid and filtration requirements.

Mechanical inspection should focus on areas exposed to high stress or abrasion. These may include platform supports, restraint assemblies, hinge points, cylinder pins, wheel guides, discharge chutes, and vibration mounts. Any crack, deformation, unusual noise, or change in movement should be investigated promptly.

Electrical and automation maintenance includes testing sensors, cable connections, control panels, communication systems, safety scanners, light curtains, alarms, and software backups. The system’s event history can help identify recurring faults or abnormal operating patterns.

Spare-parts planning is important for high-throughput sites. Common critical spares may include hydraulic seals, filters, sensors, valves, hoses, electrical relays, emergency-stop components, and wear plates. Maintaining an appropriate inventory reduces the impact of unexpected failures.

A preventive-maintenance program should be supported by operator training. Operators are often the first people to notice slower movement, incomplete discharge, unusual vibration, hydraulic noise, or changes in material flow. Early reporting can prevent minor issues from developing into major repairs.

13. Return on Investment and Operating Benefits

The financial value of an automatic side-turn truck dumper comes from several sources rather than one single saving. These sources may include reduced labor requirements, faster truck turnaround, greater throughput, lower spillage, reduced cleanup, lower product loss, improved safety performance, and better data collection.

The supplied project information indicates that typical payback periods may range from 12 to 22 months for suitable installations. This range is influenced by the number of shifts, truck arrivals, labor costs, throughput demand, material value, cleanup expenses, and the cost of the existing unloading method.

A practical return-on-investment calculation should compare the complete installed cost with measurable annual benefits. The cost side may include the dumper, foundation, hopper, conveyors, electrical equipment, controls, installation, civil works, commissioning, training, and spare parts. The benefit side may include labor savings, increased delivery capacity, reduced demurrage, lower material loss, and reduced maintenance of older equipment.

Throughput improvements should be evaluated at the system level. A faster dumper cannot increase total plant output if the receiving conveyor, crusher, storage system, or processing line is already operating at maximum capacity. Similarly, reducing unloading time may shift congestion to the truck queue or downstream transfer point. A complete process study is therefore recommended before selecting the model.

Energy use should also be considered. Hydraulic systems consume power during lifting and rotation, while vibration and conveyors add additional demand. However, improved cycle efficiency and reduced idle time may offset part of this consumption. The best configuration balances lifting speed, load capacity, material flow, motor selection, and operating schedule.

14. How the Equipment Compares with Competitors

Buyers evaluating side-turn truck dumpers should compare more than headline capacity or price. Important competitive factors include automation depth, safety architecture, hydraulic reliability, material-discharge performance, vehicle compatibility, ease of maintenance, customization, documentation, and service support.

The product range described here has several competitive strengths. First, it offers multiple capacity classes from 80 to 150 metric tons, allowing customers to select a system appropriate for their vehicle fleet rather than adapting every project to one standard size. Second, it provides 45-degree and 55-degree operating modes, supporting both free-flowing and more cohesive materials.

Third, the system can be configured with high-frequency vibration, material-guiding equipment, dedicated operation paths, remote diagnostics, and intelligent weighing. These options allow the dumper to be adapted to the actual unloading process rather than functioning as an isolated lifting platform.

Fourth, the manufacturer provides a broader range of automatic loading and unloading equipment, including rear dumpers, container flippers, and car-loading systems. This can be an advantage for customers planning several logistics projects or requiring a coordinated equipment supplier.

Fifth, the company’s stated experience across coal, steel, grain, cement, chemical, food, oil, feed, ports, and new-energy applications indicates an ability to address different material and environmental conditions. Customers should still request application-specific references and technical evidence for their own material.

Finally, integrated manufacturing and engineering can simplify responsibility. When the same supplier designs the platform, hydraulic system, control system, weighing interface, and discharge connection, it may be easier to coordinate commissioning and resolve interface issues than when separate vendors supply each subsystem.

15. Selecting the Correct Configuration

The first selection factor is vehicle type. The customer should provide the overall length, width, wheelbase, axle arrangement, tare weight, maximum loaded weight, body construction, side-door design, and suspension information for every vehicle expected to use the dumper.

The second factor is material behavior. Samples or reliable bulk-material data should be reviewed for density, moisture, particle size, angle of repose, cohesiveness, abrasiveness, temperature, and potential contamination. These properties determine the suitable tilt angle, vibration requirement, discharge opening, liner type, and dust-control strategy.

The third factor is required capacity. The selected model must support the heaviest complete vehicle, not simply the mass of the material. A suitable engineering margin should be included for uneven loading and dynamic conditions.

The fourth factor is cycle-time demand. The customer should estimate truck arrivals per hour, operating shifts, seasonal peaks, queue tolerance, and downstream process capacity. This information determines whether one dumper is sufficient or whether multiple units, buffer lanes, or automated traffic control are required.

The fifth factor is installation environment. Outdoor sites may require weather protection, corrosion-resistant coatings, drainage, freeze protection, and enhanced lighting. Indoor installations may have stricter requirements for ventilation, dust extraction, fire protection, and building clearance.

The sixth factor is automation integration. Customers should define whether the dumper must communicate with weighbridges, access-control systems, conveyors, programmable logic controllers, manufacturing execution systems, or enterprise resource-planning software.

16. Recommended Operating Workflow

A safe and efficient operating workflow begins before the truck reaches the dumper. Vehicle identification, load documentation, material verification, and weighing can be completed at the entrance or weighbridge. Traffic signals then direct the truck to the correct unloading position.

After the vehicle enters the platform, sensors confirm alignment. The truck should be stopped at the specified position, and the driver should follow the site’s instructions regarding engine status, parking brake, seatbelt, and cabin occupancy. The automatic system verifies the vehicle condition and activates restraints.

The operator initiates or confirms the cycle from the control room. The system checks that gates are closed, the danger zone is clear, downstream equipment is ready, and all required interlocks are satisfied. The platform then lifts and rotates at the programmed speed.

During discharge, the operator monitors material flow, platform angle, hydraulic status, and alarms. If the material does not flow completely, the approved vibration sequence may be activated. Manual entry into the danger zone should not be used as a normal solution for incomplete discharge.

When the load is discharged, the platform returns to the horizontal position. The control system confirms that the platform is stable before releasing the vehicle. The truck then exits under the direction of the traffic-control system, and the cycle data is recorded for operational and maintenance analysis.

17. Frequently Asked Questions

Q1. Does the dumper require modifications to standard trucks?

In the stated configuration, the equipment is designed for standard semi-trailers and rigid trucks with suitable chassis structures. Adjustable wheel chocks and hydraulic clamps can accommodate different axle arrangements. However, every truck type should be reviewed before approval because body openings, side panels, tailgates, center of gravity, and structural condition may affect compatibility.

Q2. Can one dumper handle several truck models?

It can be configured for a range of vehicle dimensions when the platform length, restraint system, sensors, and control logic are correctly selected. The customer should provide a complete vehicle list during the design stage. A system designed for one trailer type should not automatically be assumed to be suitable for every truck on the site.

Q3. Which materials can be unloaded?

The dumper is suitable for many free-flowing and semi-cohesive bulk materials, including coal, grain, sand, gravel, cement clinker, fertilizers, plastic pellets, iron ore fines, and selected agricultural products. Highly sticky or compacted materials may require a 55-degree mode, vibration, special liners, or a modified receiving hopper.

Q4. Is vibration always necessary?

No. Free-flowing materials may discharge effectively without vibration. Vibration is an optional configuration for materials that adhere to the truck body or leave significant residue. Its necessity should be determined through material testing, operating experience, or a site trial.

Q5. How much space is required?

A standard semi-trailer installation is identified as requiring approximately 16 meters in length, 5 meters in width, and 6 meters in height, including approach and discharge arrangements. Compact rigid-truck layouts may be smaller. The final footprint must include the rotation envelope, safety clearance, maintenance access, control equipment, hopper, conveyor, and emergency routes.

Q6. Can the equipment be operated remotely?

Yes. The automatic control system is designed to allow operators to supervise the unloading cycle from a remote control room. Remote operation does not remove the need for local emergency-stop devices, inspection access, trained personnel, and approved procedures for abnormal conditions.

Q7. What safety functions should be included?

Important functions include emergency stops, hydraulic lock valves, vehicle restraints, position sensors, audible and visual alarms, interlocked gates, light curtains or safety scanners, physical barriers, maintenance locks, and control-system interlocks. The final safety design must comply with the regulations and risk assessment applicable to the installation location.

Q8. How long can the equipment operate?

Service life depends on loading frequency, material abrasiveness, corrosion, maintenance quality, foundation condition, and operating discipline. The supplied product information identifies a structural service life exceeding 25 years under daily heavy use for the heavy-duty platform, subject to appropriate design and maintenance.

Q9. What is the expected investment payback?

The supplied project data indicates a typical payback range of approximately 12 to 22 months for suitable installations. The actual result depends on labor costs, shifts, throughput, vehicle utilization, material value, cleanup expenses, and the cost of integrating the equipment into the plant.

Q10. What support is required after installation?

Post-installation support should include operator training, preventive-maintenance instructions, spare-parts planning, control-system support, hydraulic inspection, safety validation, and periodic performance review. Customers should confirm warranty conditions, response times, documentation, remote-diagnostic capability, and the availability of replacement components before placing an order.

18. Why Choose an Integrated Manufacturer?

An integrated manufacturer can provide more than a standard machine. It can review the customer’s material flow, vehicle fleet, receiving system, safety requirements, and future expansion plans before recommending a configuration. This approach helps prevent mismatches between the dumper and the rest of the plant.

Jiangsu Zhengding Intelligent Equipment Co., Ltd. focuses on intelligent automated loading and unloading equipment for vehicles, containers, ships, and logistics applications. Its range includes side-turn dumpers, rear dumpers, car-loading equipment, and container flippers. This product portfolio supports a systems-engineering approach for customers with multiple transportation and transfer requirements.

The company’s stated strengths include research and development, manufacturing, intelligent controls, integrated weighing, remote diagnostics, customized solutions, and international project experience. Its equipment is used in industrial sectors that demand high availability, including steel, coal, cement, grain, chemical, food, oil, feed, port, papermaking, and new-energy operations.

For customers seeking a complete unloading solution, the manufacturer can potentially coordinate the mechanical platform, hydraulic equipment, restraints, control cabinet, weighing system, discharge interface, safety devices, and commissioning process. This can reduce the number of interfaces that the customer must manage during installation.

The best supplier decision should be based on a technical and commercial evaluation. Buyers should compare capacity, cycle time, safety functions, material compatibility, energy use, serviceability, corrosion protection, automation interfaces, delivery schedule, warranty, lifecycle cost, and reference projects. A low initial price may not represent the lowest total cost if the equipment requires frequent repairs or does not achieve the required throughput.

19. Conclusion

Automatic side-turn truck dumpers provide a practical solution for facilities that need faster, safer, and more controlled unloading of bulk materials. Their hydraulic side-tilting action allows trucks and trailers to discharge by gravity while reducing manual work near the active unloading area.

The main advantages include fully automatic operation, remote supervision, selectable 45-degree and 55-degree unloading modes, optional vibration, material-guiding equipment, high load capacity, integrated safety systems, and compatibility with a broad range of bulk materials. These features can improve truck turnaround, reduce residue and spillage, increase throughput, and support better workplace organization.

The TQXCZ 80, TQXCZ 100, and TQXCZ 150 models provide capacity options from 80 to 150 metric tons, with multiple platform sizes for different vehicle configurations. Proper selection requires detailed consideration of truck dimensions, material characteristics, site layout, discharge requirements, and downstream equipment.

Jiangsu Zhengding Intelligent Equipment Co., Ltd. adds value through integrated engineering, intelligent control, hydraulic and structural manufacturing, weighing systems, remote diagnostics, customized equipment, and experience across domestic and international industrial markets. Its broader range of automatic loading and unloading equipment can also support customers seeking coordinated logistics automation.

When correctly designed, installed, and maintained, an automatic side-turn truck dumper can become a central part of a high-efficiency bulk-material receiving system. It combines mechanical strength with automation and safety engineering, helping industrial facilities move from labor-intensive unloading toward a more reliable, data-supported, and scalable operation.

References

1. Product technical information for the TQXCZ automatic side-turn truck dumper series, including model capacities, platform dimensions, and lifting-angle configurations.

2. Jiangsu Zhengding Intelligent Equipment Co., Ltd. company profile and product portfolio information for automated vehicle, container, ship, and logistics loading and unloading systems.

3. General hydraulic equipment design principles for heavy-load lifting platforms, hydraulic cylinders, pressure protection, and controlled movement.

4. General industrial risk-assessment practices for vehicle restraint, machinery guarding, emergency stops, interlocks, and remote operation.

5. General bulk-material handling principles covering flowability, material residue, hopper design, dust control, vibration assistance, and conveyor integration.

6. Comparative performance figures and operational benchmarks supplied in the product reference material for manual, rear-dump, and side-turn unloading methods.

Product: Automatic Side-Turn Truck Dumpers
