Kiln Granotherm: Hygienic Hydrothermal Treatment for Oats and Legumes

The Kiln Granotherm is a specialized oat processing machine designed for the controlled hydrothermal treatment of dehulled oats and legumes. By combining accurate residence-time control with carefully metered moisture and heat addition, the equipment helps processors inactivate enzymes, stabilize raw materials, reduce microbial contamination, and improve the flavor and storage performance of finished products.

In modern oat processing, thermal treatment is not simply a matter of raising product temperature. The processor must deliver a repeatable combination of heat, moisture, exposure time, airflow, and cooling. If any of these conditions are poorly controlled, the material may be under-treated, over-processed, unevenly conditioned, or exposed to unnecessary contamination risks. The Kiln Granotherm addresses these challenges through a hygienic stainless-steel construction, separated hot and cold exhaust systems, accessible cleaning arrangements, removable service components, and a design intended to prevent material accumulation.

The equipment is commonly used together with a conditioner. This combination creates a controlled process sequence in which dehulled oats or legumes receive the required moisture and thermal energy before entering the treatment chamber. The result is a more stable and consistent product suitable for subsequent processing, storage, milling, flaking, food production, feed production, and other applications requiring stabilized grains.

Compared with basic heating chambers and less hygienic thermal processing systems, the Kiln Granotherm offers several important advantages. It is engineered around product safety, process accuracy, maintenance access, low energy consumption, and continuous industrial operation. These characteristics make it suitable for food and feed factories that require dependable production rather than occasional batch treatment.

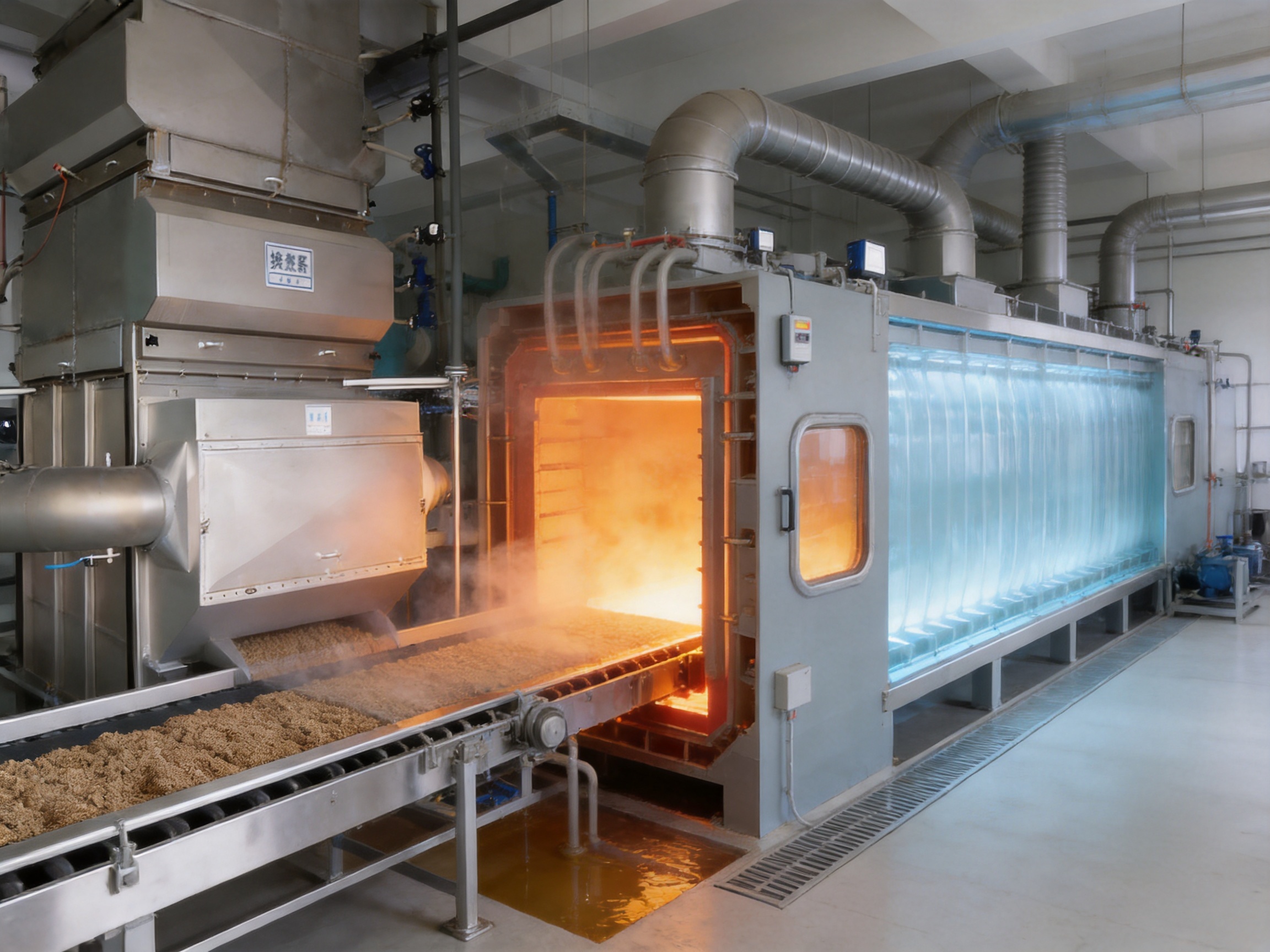

Kiln Granotherm

1. What Is a Kiln Granotherm?

A Kiln Granotherm is a continuous hydrothermal treatment system for granular agricultural materials. In its primary oat-processing application, the equipment treats dehulled oats and legumes by applying controlled moisture and heat for a defined period. The process is intended to stabilize the raw material and prepare it for later operations.

Dehulled oats contain natural enzymes that can contribute to quality deterioration during storage and processing. Lipase activity, for example, may accelerate the breakdown of oil components and contribute to undesirable flavor development. A properly designed hydrothermal treatment process can reduce this enzyme activity while also lowering the risk associated with microbial contamination.

The machine is not merely a steam heater. It is a complete process unit that must manage the movement of material, the application of steam or heated air, the removal of exhaust air, the prevention of condensation, and the cooling of treated product. Its performance depends on maintaining stable operating conditions throughout the material flow.

The Kiln Granotherm is particularly valuable where the processor requires:

• Accurate control of material retention time.
• Consistent addition of moisture and heat.
• Effective enzyme inactivation.
• Reduced microbial contamination.
• Improved flavor stability.
• Cleanable surfaces and accessible service areas.
• Reliable continuous production.
• Low heat loss and efficient energy use.

The equipment can be integrated into an oat-processing line upstream of flaking, milling, grinding, blending, or packaging. It can also be connected to conveying, dosing, steam, condensate, dust-control, and automated monitoring systems to form part of a larger production solution.

2. Why Hydrothermal Treatment Matters in Oat Processing

Oat processing requires careful management of both nutritional characteristics and product stability. Oats naturally contain valuable oils, proteins, fiber, vitamins, minerals, and other functional components. At the same time, they contain enzymes and moisture-sensitive components that can affect shelf life, taste, texture, and processing behavior.

Hydrothermal treatment uses heat and moisture to modify the condition of the grain in a controlled way. The objective is not to cook the oats excessively or damage their nutritional quality. Instead, the process is adjusted to deliver sufficient thermal energy for enzyme inactivation and stabilization while maintaining the desired characteristics of the material.

Moisture plays an important role in thermal processing. Dry heating alone may not provide the same penetration and conditioning effect as a controlled combination of moisture and heat. Moisture can improve heat transfer into the particles, help create a more uniform treatment profile, and prepare the product for downstream operations.

Residence time is equally important. If the product moves too quickly, some material may not receive sufficient treatment. If it remains in the system too long, unnecessary energy may be consumed and the product may experience excessive thermal exposure. A controlled retention period helps the processor achieve a repeatable balance between treatment intensity and product quality.

Cooling must also be considered. After thermal treatment, the product should be cooled under hygienic conditions before it moves to the next stage. Poor cooling design may result in condensation, moisture migration, microbial growth, or uneven product properties. The Kiln Granotherm separates hot and cold exhaust air to reduce these risks and support a cleaner production environment.

For legumes, hydrothermal processing can provide similar benefits. The treatment may help stabilize the material, improve handling properties, reduce microbial risks, and prepare the product for further processing. The exact temperature, moisture level, and residence time depend on the material, product specification, and production capacity.

3. Process Principle of the Kiln Granotherm

The Kiln Granotherm is generally installed as part of a controlled process line. Dehulled oats or legumes enter the system at a regulated feed rate. A conditioner may first add a defined quantity of moisture and begin the tempering process. The material then enters the treatment chamber, where heat and moisture are maintained within the specified operating range.

During treatment, the material is exposed to controlled thermal conditions while moving through the equipment. The internal design supports a stable flow and helps prevent excessive accumulation. The process can be adjusted according to product type, moisture content, required treatment intensity, and desired output.

The main operating stages can be summarized as follows:

1. Raw material is metered into the processing line.
2. The conditioner adds moisture according to the recipe or operating requirement.
3. The material enters the hydrothermal treatment chamber.
4. Heat and steam provide the required thermal energy.
5. The material remains in the treatment zone for a controlled period.
6. Hot exhaust air is discharged through a dedicated path.
7. The treated material passes into a cooling section.
8. Cold exhaust air is managed separately to reduce condensation.
9. The stabilized product leaves the machine for downstream processing.

This sequence allows the system to function as a controlled process rather than an uncontrolled heating enclosure. Operators can adjust material flow and process conditions to match production requirements. The ability to set retention time accurately is particularly important when a plant processes different oat varieties, moisture levels, or product grades.

3.1 Moisture and Heat Control

The addition of moisture must be accurate because excessive moisture may increase drying requirements, while insufficient moisture may reduce the effectiveness of the thermal treatment. The conditioner and associated pipelines are therefore important parts of the overall system.

Heat must also be distributed consistently. The stainless-steel radiators provide the required heating surface and are designed as pull-out components. This arrangement supports both thermal operation and practical maintenance. When a radiator requires inspection or cleaning, it can be removed more conveniently than a permanently enclosed component.

Steam and condensate management are equally significant. Steam pipelines, air lines, and condensate pipelines should remain clean and accessible. The Kiln Granotherm uses removable pipeline arrangements to simplify cleaning and inspection, helping the operator maintain hygienic process conditions over the equipment’s service life.

3.2 Retention Time Control

Retention time is the period during which the material remains within the treatment system. In a continuous plant, retention time is influenced by feed rate, equipment configuration, material flow, and operating conditions. Accurate control helps ensure that the entire product stream receives a similar treatment.

A stable retention time is especially important when the equipment is used for enzyme inactivation. Under-treatment may leave residual enzyme activity, while over-treatment can affect flavor, color, texture, or energy consumption. The correct settings should be established through commissioning trials and confirmed through product testing.

Because raw materials can vary, a flexible system is beneficial. Oats may arrive with different moisture levels, particle sizes, temperatures, and compositions. The ability to adjust operating conditions allows the plant to maintain a consistent process even when incoming material is not completely uniform.

4. Hygienic Design and Product Safety

Hygiene is one of the most important design considerations in food and feed processing. Surfaces that contact the product must resist corrosion, remain easy to clean, and avoid areas where material can accumulate. The Kiln Granotherm is designed with stainless steel for all parts that come into contact with the material.

Stainless steel offers several advantages in this application. It resists corrosion caused by moisture and steam, provides a durable product-contact surface, and supports routine washing and sanitation. It also reduces the risk that rust, surface deterioration, or contaminated fragments will enter the material stream.

Another important feature is the absence of drive components and moving parts within the material flow. Moving mechanical components can create maintenance challenges and may introduce wear particles, lubrication risks, or product entanglement. By keeping drive components outside the material path, the system supports a cleaner and more reliable process environment.

4.1 Separation of Hot and Cold Exhaust Air

The separation of hot and cold exhaust air is a key hygienic feature. When hot and cold air streams mix inappropriately, moisture may condense on internal surfaces. Condensation can create damp areas where product residues accumulate and microorganisms may grow.

The Kiln Granotherm separates these exhaust air paths to reduce condensation. This contributes to a more stable internal environment and helps protect the product during both heating and cooling. It also simplifies the management of airflows within the system.

In a food-processing plant, preventing condensation is more effective than responding to microbial growth after it has occurred. The equipment’s airflow arrangement therefore supports a preventive hygiene strategy. Proper plant ventilation, filtration, cleaning procedures, and operating discipline remain necessary, but the machine design reduces one of the major causes of internal moisture accumulation.

4.2 Preventing Product Accumulation

Product accumulation can reduce capacity, create quality variation, increase cleaning time, and contribute to contamination risks. The Kiln Granotherm incorporates a design intended to prevent material from collecting in dead zones and difficult-to-reach areas.

Preventing accumulation is particularly important when the plant changes from one material or product specification to another. A machine with fewer hidden accumulation points can reduce changeover time and make cleaning verification more practical.

Operators should still follow a defined cleaning schedule. The equipment’s hygienic design improves access and reduces risk, but good sanitation depends on the complete operating procedure, including inspection, removal of residues, pipeline cleaning, and documentation.

5. Maintenance Advantages

Industrial equipment must be designed not only for production but also for service. Maintenance access affects uptime, labor requirements, sanitation quality, and the total cost of ownership. The Kiln Granotherm includes several features intended to make routine maintenance more convenient.

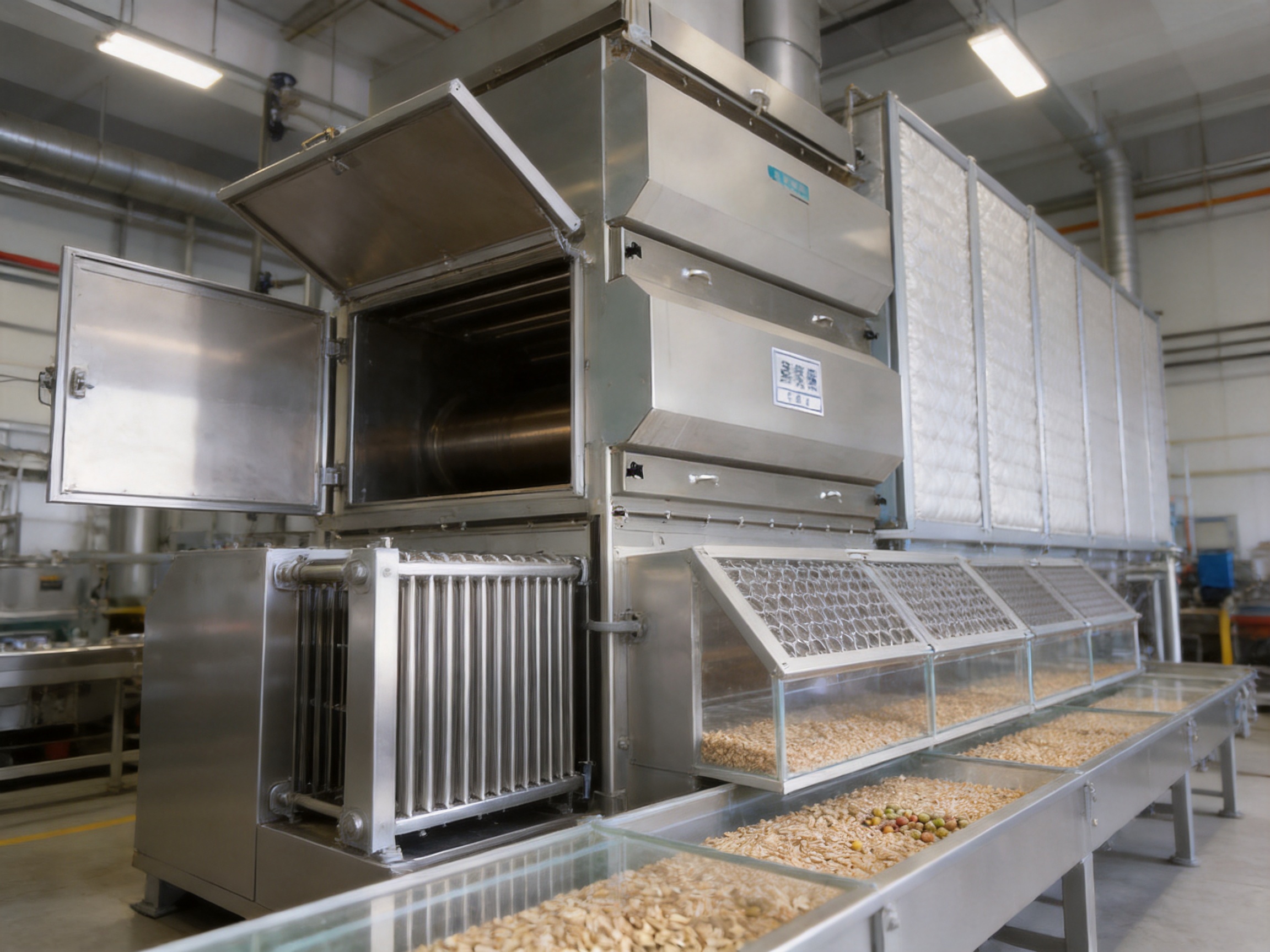

Hinged cleaning flaps provide access to internal areas without requiring extensive disassembly. These flaps allow operators and maintenance personnel to inspect surfaces, remove residues, and verify the condition of the cooling chamber.

Quick-release closures on the cooling chamber air outlet guards further reduce service time. Instead of removing numerous fasteners, operators can open the relevant access points quickly when cleaning or inspection is required.

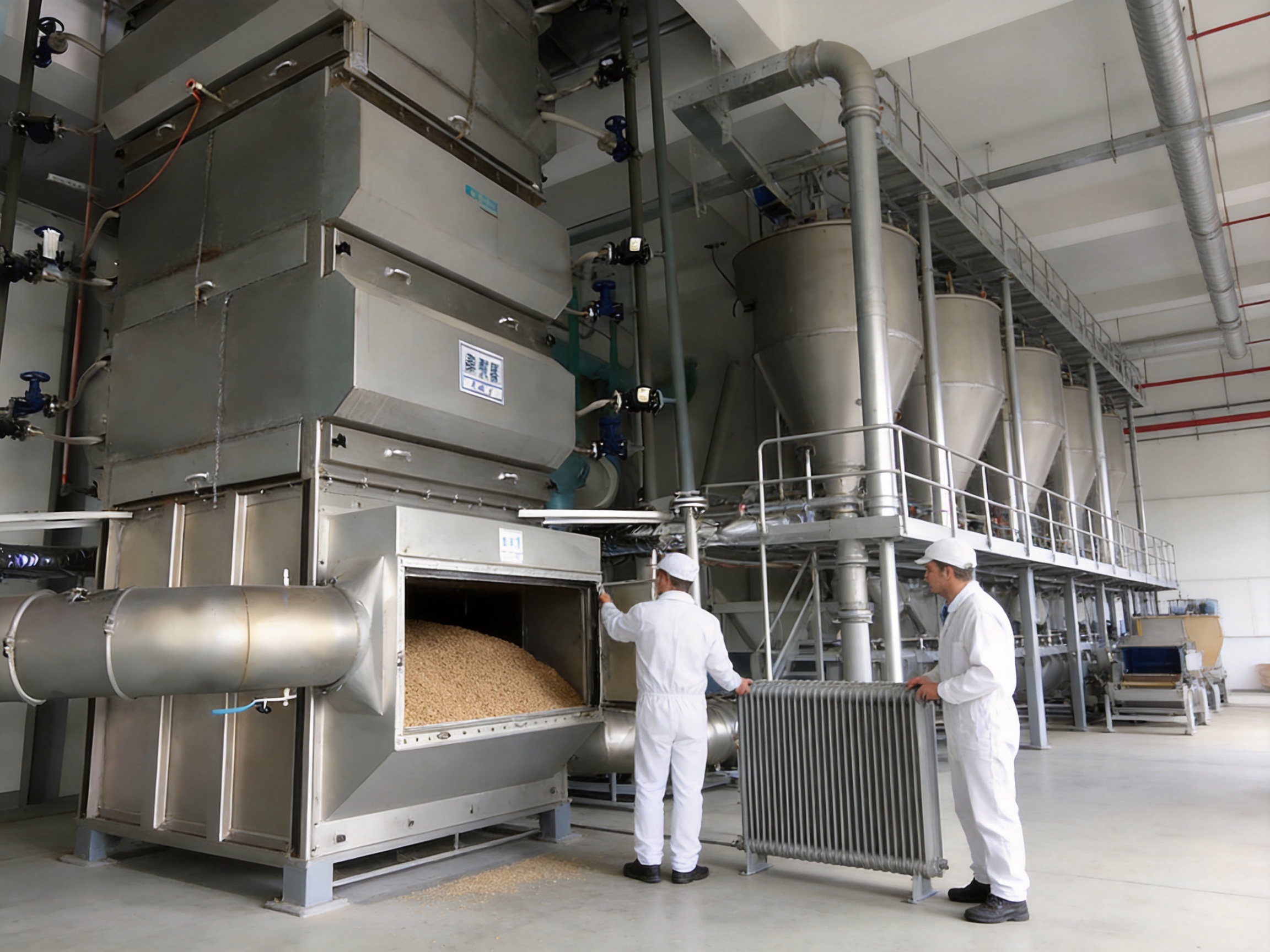

The stainless-steel radiators are pull-out type. This is an important practical advantage because radiators are exposed to continuous thermal service and may eventually require inspection, cleaning, repair, or replacement. A pull-out design simplifies access and reduces the time needed for maintenance work.

Air, steam, and condensate pipelines are also designed to be easily removable. Removable piping supports cleaning and allows technicians to check internal conditions. It can also make it easier to replace seals, inspect connections, and correct problems before they affect production.

Compared with equipment that has permanently enclosed heat-transfer components or inaccessible pipelines, this arrangement can provide a better maintenance experience. Reduced service complexity may help shorten planned shutdowns and improve the availability of the complete processing line.

5.1 Recommended Maintenance Practices

Maintenance requirements depend on operating hours, material properties, cleaning methods, steam quality, and site conditions. A suitable maintenance program should include regular inspection of product-contact surfaces, radiator condition, access doors, seals, air outlets, and pipeline connections.

Operators should inspect for signs of residue accumulation, corrosion, loose fittings, abnormal noise, leakage, or changes in airflow. Steam and condensate systems should be checked for proper drainage and insulation. Air ducts and exhaust paths should remain free from obstruction.

Preventive maintenance is preferable to emergency repair. Planned inspections can identify deteriorating seals or restricted airflow before they cause product contamination, unstable temperature, excess condensation, or unplanned downtime.

6. Energy Efficiency and Thermal Performance

Energy consumption is a major operating cost in thermal processing. Heat is required to raise the product temperature, evaporate or condition moisture, maintain the treatment chamber, and manage exhaust air. A poorly insulated system can lose significant energy through its walls, doors, piping, and exhaust system.

The Kiln Granotherm is designed with effective thermal insulation. Good insulation reduces heat loss to the surrounding environment and helps maintain a stable internal process temperature. It also improves workplace conditions by lowering the external surface temperature of the machine.

Low energy consumption is supported by several design elements working together:

• Thermal insulation around the treatment chamber.
• Controlled steam and heat addition.
• Separation of hot and cold exhaust air.
• Reduced heat loss through removable and serviceable components.
• Accurate retention-time control that avoids unnecessary treatment.
• Stable material flow and reduced accumulation.

Energy performance should be evaluated across the complete processing line rather than by considering the treatment chamber alone. The condition of the steam supply, insulation quality, exhaust arrangement, product moisture, ambient temperature, and operating capacity all influence actual consumption.

When operated at an appropriate load, the machine can help processors avoid over-heating and excessive residence time. Consistent process control also reduces the risk of rejected or reprocessed material, which represents an indirect energy saving.

7. Advantages Over Conventional Treatment Equipment

Conventional heating equipment may provide basic thermal exposure, but it does not always offer the same level of hygienic control, maintenance access, or process accuracy. The Kiln Granotherm is designed specifically for continuous hydrothermal stabilization, making it better suited to modern oat-processing requirements.

Comparison of Key Processing Considerations

Processing consideration	Basic heating equipment	Kiln Granotherm approach	Practical benefit
Product-contact construction	May use mixed materials or less specialized surfaces	Stainless steel in contact with material	Improved corrosion resistance and hygiene
Material retention	May vary with feed rate and internal buildup	Designed for accurate retention-time settings	More repeatable thermal treatment
Exhaust management	Hot and cold air may share an airflow path	Hot and cold exhaust air are separated	Reduced condensation and microbial risk
Internal moving parts	May expose product to drives or mechanical components	No drive components or moving parts in the material flow	Cleaner product path and reduced wear risk
Cleaning access	May require extensive disassembly	Hinged cleaning flaps and quick-release closures	Shorter cleaning and inspection procedures
Radiator servicing	Heating components may be difficult to reach	Pull-out stainless-steel radiators	More convenient maintenance
Pipeline cleaning	Fixed or difficult-to-remove pipework	Removable air, steam, and condensate pipelines	Improved sanitation and serviceability
Thermal insulation	May be limited or inconsistent	Designed for strong insulation and low energy use	Lower heat loss and improved operating efficiency

The most important competitive advantage is the way these features operate together. A stainless-steel surface alone does not guarantee hygienic production. Accurate retention time alone does not guarantee product stability. The Kiln Granotherm combines material-contact hygiene, controlled airflow, service access, and thermal efficiency into one integrated system.

8. Product Models and Main Technical Parameters

The equipment is available in different models to match production capacity. The stated output values are based on oats and may vary according to raw-material moisture, bulk density, feed characteristics, treatment conditions, and plant configuration.

Main Technical Parameters

Product model	Steam consumption	Output based on oats
YZZ90	200 kilograms per ton	1.0 to 2.0 tons per hour
YZZ140	200 kilograms per ton	2.0 to 4.0 tons per hour

The selection between models should be based on the required production rate, operating schedule, raw-material properties, available steam capacity, and downstream equipment. A plant should also consider future expansion and whether it expects to process oats, legumes, or several product grades.

Before final equipment selection, the customer and manufacturer should confirm the target moisture content, required treatment effect, inlet temperature, product residence time, steam pressure, exhaust arrangement, and cooling conditions. These factors have a direct influence on the final design and operating performance.

9. Integration With a Complete Oat-Processing Line

The Kiln Granotherm performs best when integrated with upstream and downstream equipment. A typical oat-processing line may include receiving, cleaning, grading, dehulling, aspiration, conditioning, hydrothermal treatment, cooling, flaking, milling, weighing, and packaging.

Upstream cleaning equipment should remove foreign materials, dust, stones, metal, and other contaminants before the oats reach the conditioner and thermal treatment system. Effective cleaning protects the equipment and helps ensure that the hydrothermal process is applied to a consistent raw material.

Dehulling is also important. The product is primarily intended for dehulled oats and legumes, and the quality of the dehulled material influences heat and moisture transfer. Excessive hull content may affect flow, bulk density, and final product quality.

The conditioner prepares the material by adding moisture in a controlled manner. It should be connected to reliable water or steam systems and equipped with suitable mixing and control arrangements. Uniform conditioning helps the Kiln Granotherm deliver a more consistent thermal treatment.

After treatment and cooling, the stabilized oats may proceed to flaking or milling. The thermal process can improve the suitability of the material for these downstream operations, although the exact effect depends on product specifications and process settings.

Automated conveying and transfer systems can connect the Kiln Granotherm to the rest of the plant. Consistent feed and discharge rates help prevent surges, interruptions, and material segregation. Where bulk material is loaded into vehicles or containers, automated loading and unloading equipment can extend process continuity beyond the thermal-processing area.

10. Manufacturing Strengths and Engineering Capabilities

The manufacturer behind the Kiln Granotherm is a national high-tech enterprise engaged in the research, development, manufacturing, and sales of intelligent equipment. Its engineering scope covers automated loading and unloading equipment for automobiles, containers, ships, and related logistics applications, as well as systems that support bulk-material handling.

This background is relevant to thermal-processing customers because a stable production line depends on more than one machine. Material receiving, conveying, loading, unloading, metering, discharge, and transfer all affect the performance of the central processing equipment. A supplier with experience in integrated logistics equipment can help customers coordinate these stages.

The company manufactures equipment such as rear dumpers, side-turn truck dumpers, car-loading systems, and container flippers. Its products are used in industries including steel, chemicals, cement, coal, grain, oil, food, feed, ports, papermaking, and new energy.

Experience across these industries supports several manufacturing strengths:

• Understanding of bulk-material behavior.
• Experience with continuous industrial operation.
• Capability to design equipment for different loading conditions.
• Knowledge of automated transfer and discharge systems.
• Ability to develop customized solutions.
• Experience integrating metering and unloading systems.
• Attention to operational safety and equipment reliability.

For customers purchasing a Kiln Granotherm, these capabilities can be valuable during project planning. The equipment may need to connect with conveyors, storage bins, truck-loading systems, container-loading equipment, dust-control units, and automated weighing systems. A supplier experienced in integrated handling can help reduce interface problems between separate machines.

10.1 Research and Development

Research and development are essential for specialized food-processing equipment. Thermal treatment depends on the interaction of product characteristics, heat-transfer surfaces, airflow, moisture, residence time, and cleaning requirements. Equipment must therefore be developed around actual process conditions rather than general-purpose mechanical design alone.

The manufacturer’s focus on intelligent equipment supports the use of automation, monitoring, and controlled operation. Depending on the project, a processing line can be configured to monitor temperature, steam supply, feed rate, airflow, material level, and discharge conditions.

Automation can help operators maintain repeatable production and identify deviations quickly. It can also support data recording for quality assurance, maintenance planning, and process optimization. The appropriate level of automation should be selected according to production scale, customer requirements, and local operating practices.

10.2 Manufacturing and Quality Control

Advanced manufacturing of thermal-processing equipment requires careful control of material selection, stainless-steel fabrication, welding, dimensional accuracy, insulation installation, pipeline assembly, and final testing. Product-contact surfaces should be finished and assembled in a way that minimizes crevices and supports cleaning.

Welded stainless-steel parts should be checked for continuity, surface quality, distortion, and proper alignment. Doors, flaps, guards, and closures should be verified for reliable operation. Removable radiators and pipelines should be checked to ensure that they can be withdrawn and reinstalled without unnecessary difficulty.

Thermal insulation should be installed consistently to reduce heat loss and protect operators. Steam and condensate connections should be inspected for leakage risks, while exhaust-air paths should be checked for correct separation and unobstructed flow.

Before delivery, the equipment should undergo dimensional inspection, functional checks, and appropriate factory testing. The final commissioning process at the customer’s site should verify material flow, steam consumption, temperature stability, retention time, cooling performance, and cleaning access.

11. Installation and Commissioning Considerations

Successful installation begins with a clear understanding of the plant layout. The customer should allocate sufficient space around the Kiln Granotherm for operation, inspection, cleaning, radiator removal, pipeline service, and safe access to the cooling chamber.

The foundation must support the equipment and maintain correct alignment. Steam, condensate, air, electrical, and control connections should be prepared according to the approved installation drawings. Exhaust air should be routed in a way that prevents backflow and limits condensation within the plant.

Commissioning should normally begin with an unloaded inspection. Technicians should verify that access doors close correctly, removable components are secure, pipelines are connected properly, and no foreign objects remain in the product path.

The system can then be tested with air and steam before material is introduced. This stage helps confirm airflow direction, exhaust separation, valve operation, condensate drainage, temperature response, and control-system signals.

Material trials should be conducted gradually. The operator can begin with a lower feed rate, establish stable conditions, and then increase output while monitoring product temperature, moisture, residence time, and cooling performance. Samples should be evaluated to confirm that the required stabilization effect has been achieved.

Commissioning records should include the selected operating parameters, raw-material characteristics, measured steam consumption, output, product moisture, temperature profile, and any adjustments made during the trial. These records provide a useful reference for future production and troubleshooting.

12. Operating Practices for Reliable Performance

Operators should begin each production shift with a basic inspection. Product-contact areas, cleaning flaps, cooling outlets, seals, steam connections, and exhaust paths should be checked for visible problems. The system should be free from accumulated residues and standing water.

The feed rate should remain stable whenever possible. Sudden changes in feed can affect residence time, heat transfer, moisture distribution, and final product temperature. If a change in output is necessary, it should be made gradually and recorded.

Steam supply should be stable and appropriate for the process. Fluctuating steam pressure can produce inconsistent heating and may affect product moisture. Condensate must be removed effectively so that the heating system can operate efficiently.

Cooling performance should be checked before product enters storage or downstream processing. Product that is discharged too hot may cause moisture migration, condensation, or storage problems. Product that is cooled too aggressively may experience unwanted changes in moisture distribution. The correct cooling condition should be established during commissioning.

Operators should also monitor for unusual odors, changes in product color, excessive dust, unstable airflow, or unexplained output variation. These signs may indicate a problem with feed quality, steam supply, exhaust conditions, material accumulation, or control settings.

13. Applications Beyond Oats

Although the primary application is hydrothermal treatment of dehulled oats, the Kiln Granotherm can also be used for legumes and other suitable granular agricultural materials. The suitability of a new material should be confirmed through testing because particle size, moisture content, density, oil content, and heat sensitivity can vary substantially.

Legumes may require thermal stabilization before further processing into food ingredients, feed products, flours, or other materials. The treatment settings should be selected according to the desired level of enzyme reduction, microbial control, flavor development, and moisture adjustment.

Other potential applications may include specialty grain treatment and selected particulate food ingredients. However, the equipment should not be assumed suitable for every material without a technical evaluation. Materials that are sticky, highly cohesive, excessively fragile, or prone to agglomeration may require a different handling arrangement.

Product trials are recommended when the material differs significantly from standard oats. Testing should evaluate flow behavior, thermal response, moisture change, residence-time requirements, product quality, and cleaning performance.

14. Frequently Asked Questions

Q1: What is the main purpose of the Kiln Granotherm?

The main purpose is to provide controlled hydrothermal treatment for dehulled oats and legumes. The process adds heat and moisture for a defined period to support enzyme inactivation, product stabilization, microbial-risk reduction, and improved flavor quality.

Q2: Does the equipment require a conditioner?

The Kiln Granotherm is often used together with a conditioner. The conditioner helps add and distribute moisture before the material enters the thermal treatment chamber. The final configuration depends on the raw material, process recipe, and customer requirements.

Q3: Why are stainless-steel product-contact surfaces important?

Stainless steel provides corrosion resistance and a durable surface suitable for food and feed processing. It also supports cleaning and helps reduce the risk of contamination caused by rust, surface deterioration, or unsuitable contact materials.

Q4: How does the system reduce condensation?

The system separates hot and cold exhaust air. This arrangement helps prevent the mixing of air streams with different temperatures and moisture levels, reducing the likelihood of condensation inside the equipment and supporting more hygienic conditions.

Q5: How is residence time controlled?

Residence time is controlled through the equipment configuration, material feed rate, operating conditions, and process settings. During commissioning, the correct combination is established for the product and required treatment intensity.

Q6: What are the output capacities of the available models?

The YZZ90 model has a stated oat-based output of approximately 1.0 to 2.0 tons per hour. The YZZ140 model has a stated oat-based output of approximately 2.0 to 4.0 tons per hour. Actual performance depends on material characteristics and operating conditions.

Q7: What is the listed steam consumption?

The stated steam consumption for both listed models is 200 kilograms per ton. Actual consumption can vary according to incoming moisture, required treatment intensity, ambient conditions, insulation, and plant operation.

Q8: How does the equipment support cleaning?

Cleaning is supported by stainless-steel product-contact surfaces, hinged cleaning flaps, quick-release cooling chamber closures, removable radiators, and removable air, steam, and condensate pipelines. These features improve access for sanitation and inspection.

Q9: Are there moving parts inside the material flow?

The equipment is designed without drive components or moving parts within the material flow. This helps reduce the risk of product contamination, mechanical wear, and maintenance problems in the product-contact area.

Q10: Can the machine process materials other than oats?

It can be used for legumes and potentially other suitable granular materials. A technical evaluation and product trial should be completed before processing a new material because different products may require different heat, moisture, residence-time, and cooling conditions.

Q11: How should the equipment be integrated into a plant?

The Kiln Granotherm can be integrated with cleaning, dehulling, conditioning, conveying, cooling, flaking, milling, weighing, packaging, and bulk-loading equipment. The layout should provide space for safe operation, cleaning, maintenance, and inspection.

Q12: What information is needed before selecting a model?

Important information includes the required output, raw-material type, inlet moisture, bulk density, particle size, target treatment effect, available steam conditions, operating hours, downstream process, cleaning method, and future capacity requirements.

15. Why Choose This Equipment for a Modern Processing Plant?

A modern oat-processing plant needs more than a heat source. It needs a controlled, cleanable, maintainable, and energy-conscious system that produces consistent material every hour of operation. The Kiln Granotherm addresses these needs through a combination of thermal treatment capability and hygienic engineering.

Its stainless-steel construction supports product safety. Its separated exhaust system helps control condensation. Its lack of moving components within the material flow reduces contamination and wear concerns. Its accessible cleaning flaps, quick-release closures, pull-out radiators, and removable pipelines simplify maintenance. Its insulation helps reduce energy loss, while accurate retention-time settings support repeatable treatment.

The manufacturer’s broader experience in intelligent logistics and automated loading and unloading equipment adds value for customers seeking a complete material-handling solution. The company can support applications involving grain, food, feed, bulk materials, containers, vehicles, and related logistics operations.

For processors comparing the equipment with conventional heating systems, the most significant difference is the integrated approach. The Kiln Granotherm is designed around the complete treatment cycle: moisture addition, controlled heating, exhaust management, residence-time control, cooling, cleaning, and maintenance. This makes it a practical choice for facilities that value stable product quality, hygienic production, efficient operation, and long-term serviceability.

Conclusion

The Kiln Granotherm is a purpose-designed hydrothermal processing system for dehulled oats, legumes, and other suitable granular materials. It helps processors manage enzyme activity, microbial risks, product flavor, moisture, and thermal exposure through controlled treatment conditions.

Its main advantages include stainless-steel product-contact construction, no drive components or moving parts in the material path, separated hot and cold exhaust air, accessible cleaning flaps, quick-release cooling guards, pull-out radiators, removable pipelines, anti-accumulation design, strong insulation, and low energy consumption.

These characteristics make the equipment more than a conventional heating unit. It is an integrated processing solution designed for hygienic operation, reliable maintenance, and consistent production. When properly selected, installed, commissioned, and operated, the Kiln Granotherm can become an important part of an efficient oat or legume processing line.

For a successful project, customers should evaluate raw-material characteristics, required capacity, steam availability, desired treatment effect, downstream equipment, cleaning procedures, automation requirements, and future expansion plans. With the right configuration, the system can support stable hydrothermal processing while reducing operational risks and improving the overall performance of the production facility.

References

1. Technical product information for Kiln Granotherm hydrothermal treatment equipment.

2. Technical parameter sheet for YZZ90 and YZZ140 oat-processing models.

3. General principles of hygienic design for food and feed processing equipment.

4. General engineering practices for steam heating, condensate removal, and thermal insulation.

5. General principles of enzyme inactivation and hydrothermal stabilization in grain processing.

6. General maintenance practices for continuous thermal-processing machinery.

7. Company information concerning intelligent automated loading, unloading, and bulk-material handling equipment.

Product: Kiln Granotherm
